Sandwich Diaphragm Pump
Overview
- Performance conforms to API 675.
- Glandless design and entirely Leak Proof operation.
- Integrated Pressure Relief Valve.
- Rupture indication arrangement (RIA)is an additional facility available with these pumps. These pumps with RIA are provided with sandwich of two diaphragms. The rupture of any one of the diaphragm can be sensed by pressure sensing device.
- Automatic air bleeding from the hydraulic oil ensures better metering accuracy.
- Manual stroke variation mechanism.
Features

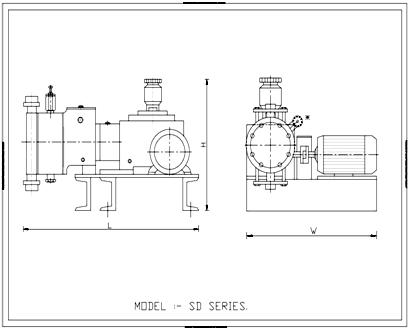

Technical Data
| Flow rate | Pressure | Pump Model | Installation Dimensions | ||
| (Ltr / Hr) | bar (g) Max. | L | W | H | |
| 0-125 | 80 | SD1011/SZ1 | 550 | 350 | 450 |
| 0-271 | 100 | SD2017/SZ1 | 660 | 410 | 490 |
| 0-750 | 20 | SD2017/SZ2 | 700 | 410 | 520 |
| 0-475 | 200 | SD3530/SZ1 | 850 | 570 | 700 |
| 0-1250 | 40 | SD3530/SZ2 | 850 | 570 | 700 |
| 0-3200 | 17 | SD3530/SZ3 | 900 | 550 | 730 |
| 0-5090 | 37 | SD6040/SZ3 | 1120 | 780 | 900 |
| 0-7332 | 12 | SD6040/SZ4 | 1180 | 900 | 900 |
Options
- Multiple Head with identical or different outputs for each head using single drive.
- Jacketed Head for Heating or Cooling the liquid been pumped.
- Automatic flow variation by receiving 4-20 mA signal from the process.
Material of Construction
Materials Of Construction being offered :
- SS304/ SS304L
- SS316/ SS316L
- Carbon Steels
- PP
- PTFE
- PVC
- PVDF
- Alloy20
- Hastalloy
- Any other special alloy
Application
- Oil & Gas
- Petrochemicals
- Power
- Chemicals and Fertilizers
- Water, Waste Water, Sewage Treatments
- Pharmaceuticals
- Paper and Textiles
- Food and Beverages
Hydraulically Actuated Diaphragm Type Chemical Injection Pump Installed By Us At PD Oman
