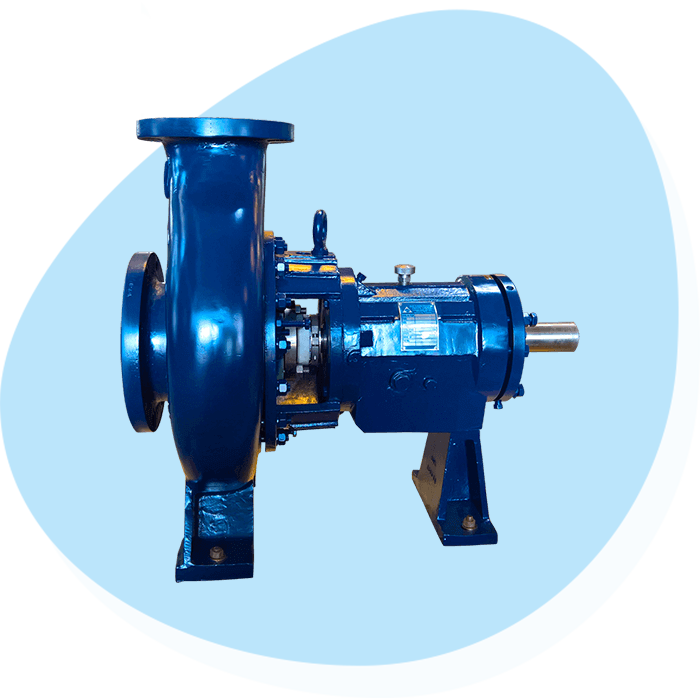

CHEMICAL PROCESS PUMP (ECH+N)

Equipped with a Captive Steel Foundry With a Capacity of 450 MT/month

The offered chemical process pumps are designed to handle all kinds of liquids such as alkalis, acids, starch, filtrate etc. The impeller construction and external adjustment makes it easy to use.

Operating Range

  • Delivery Size : 25mm to 200mm
  • Capacity : Up to 700m³/hr
  • Head : Up to 180m
  • Temperature : Up to 200° C
  • Pressure: Up to 26 bar

Design Features

  • Conforming to ANSI B73.1
  • Open impeller construction
  • End suction / Top centre line discharge
  • Only 3 bearing beds to cover 32 models
  • Gland packed / mechanical seal
  • Simple external adjustment for impeller wear

Applications

Handles all chemical process requirements

Acids, alkalies, corrosive slurries

Suitable for all liquids with / without solids

Green liquor, black liquor, Caustic Slurry, lime-mud slurry, extraction, Alkalies, Acids, NaOH, China clay, Fitrate, Hypo, Spent wash, starch etc in pulp, paper mills & basic metal industries
