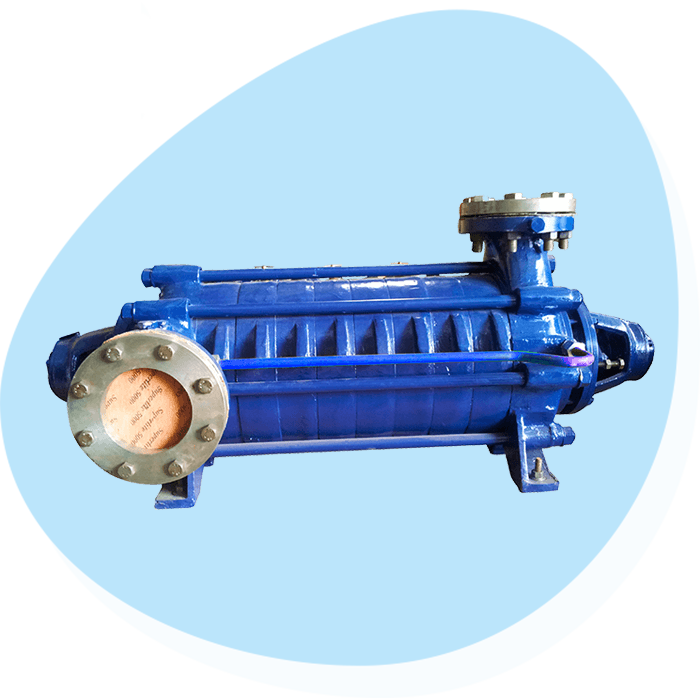

MULTI-STAGE PUMPS (MD)

Equipped with a Captive Steel Foundry With a Capacity of 450 MT/month

Multi-Stage pumps have a horizontal, barrel type construction with an axial thrust. Hence, it is suitable boiler feed water service, condensate extraction and for general water and fire-fighting systems.

Operating Range

  • Delivery Size : 40mm to 125mm
  • Capacity : Up to 350m³/hr
  • Head: Up to 600m
  • Temperature : Up to 120° C
  • Pressure: Up to 90 bar

Design Features

  • Barrel type construction
  • Multi-Stage with single suction -closed impeller
  • Axial thrust compensated by Balancing Drum or Disc

Applications

Boiler feed water service

Main & auxiliary condensate extraction

General water & fire - fighting systems

Mine - dewatering & descaling

High pressure application in pulp & paper mills
