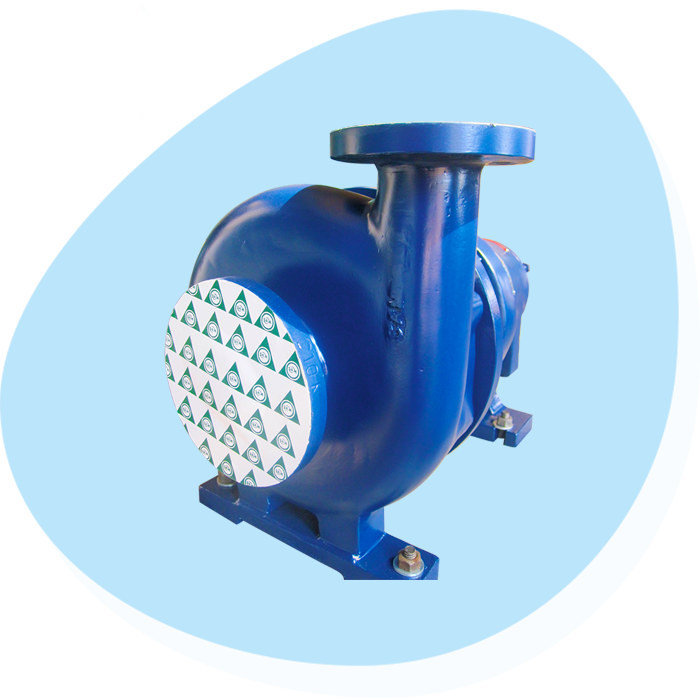

NON CLOG PUMPS/SPONGE BALL PUMPS (FF/THM/TPP)

Equipped with a Captive Steel Foundry With a Capacity of 450 MT/month

Non-clog pumps have a limited solids handling capacity. The fully-free vortex design enhances the non-clogging operation. It is suitable for liquids having big particles of sludge.

Operating Range

  • Delivery Size : 32mm to 150mm
  • Capacity : Up to 350m³/hr
  • Head : Up to 50m
  • Temperature : Up to 120° C
  • Pressure : Up to 12 bar

Design Features

  • Non-clogging operation, fully free Vortex design
  • Any solid that can enter the pump will pass through the discharge
  • Minimum particle degradation, sudden changes in direction & turbulence have been eliminated
  • Fluid does not pass through the impeller; particle leaves in single rotation

Applications

For any liquid having big particles (Up to 75mm)

For sludge, pulp, Ossein, slurry applications
