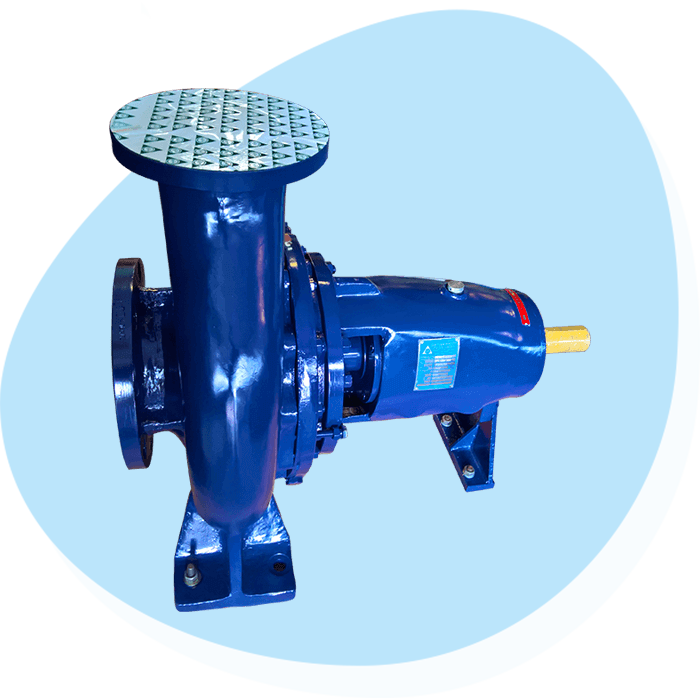

CHEMICAL PUMPS (CPC)

Equipped with a Captive Steel Foundry With a Capacity of 450 MT/month

Chemical process pumps are used in a variety of process applications due to their reliability and reduced operating costs. It is mainly used in the chemical, petrochemical, acids, aggressive products and inorganic and organic products industry.

Operating Range

  • Delivery Size : DN 32 to 200 mm
  • Capacity : Up to 750m³/hr
  • Head : Up to 150m
  • Temperature : Up to 200° C
  • Pressure: Up to 22 bar

Design Features

  • Conforming to DIN 24256/ISO 2858
  • Back pull out design
  • Engineered to API - 610 - 6th edition
  • Only four bearing beds to cover 32 models
  • Closed impeller
  • Gland packed / Mechanical seal

Applications

Process, Petrochemicals, Refineries, Fertilizers, Paper, Sugar

Handling corrosive acids, alkalies

Hydrocarbons, Oils, Thermic fluids

Clarified water, back water, white water, De-inking water, soft water, centri cleaner application in pulp & paper mills
