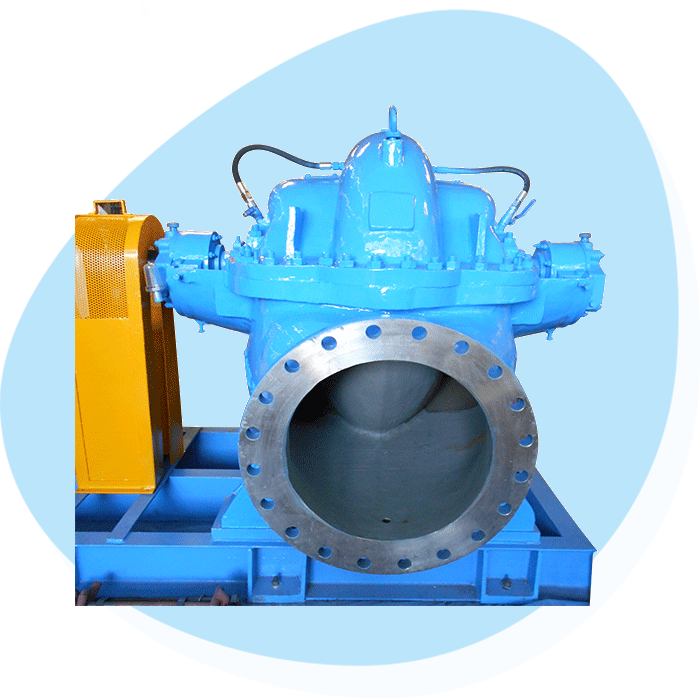

HORIZONTAL SPLIT CASE PUMPS (ZM)
Equipped with a Captive Steel Foundry With a Capacity of 450 MT/month
The axial split volute case pumps have been developed for the most exacting conditions and can be used for multitude operations such as pumping crude oil, oil and hydrocarbons. Further, it can also be used to pump river water, hot water and black water. The design features an axial split.
Operating Range
- Delivery Size : 50mm to 700mm
- Capacity : Up to 4000m³/hr
- Head : Up to 140m
- Temperature : Up to 220° C
- Pressure : Up to 40 bar
Design Features
- Axial split, single stage
- Double suction, radial impeller
- High reliability & vibration free performances
- Gland packing / mechanical seal
- Reverse rotation available
Applications
Water, Fire-fighting
Fan pump, stock feed, stock circulation, centri-cleaner application in pulp & paper mills
Storm water, irrigation
Industries transfer works
