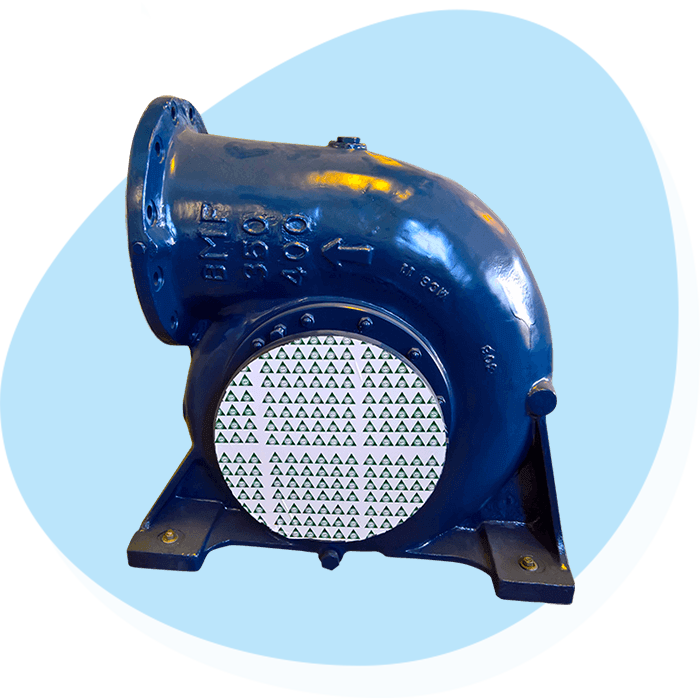

MIXED FLOW PUMPS (MF)

Equipped with a Captive Steel Foundry With a Capacity of 450 MT/month

The horizontal mixed flow pumps are used to pump clean, turbid and slightly contaminated liquids. It can be used for sewage works, irrigation, drainage and for pumping sea water and in the sugar industry.

Operating Range

  • Delivery Size : DN 200 to 450 mm
  • Capacity : Up to 3000m³/hr
  • Head : Up to 40m
  • Temperature : Up to 110° C
  • Pressure: Up to 7.5 bar

Design Features

  • Horizontal, Single stage
  • End suction & discharge branch arranged tangentially upwards / Horizontal
  • Open impeller construction

Applications

Clean, turbid or slightly contaminated liquids

Medium & low heads in water works & Sewage works

Irrigation & drainage

Dewatering & pumping sea water

Spray pond / injection water applications in sugar mills

Pulp transfer / centri cleaner in pulp & paper mills
