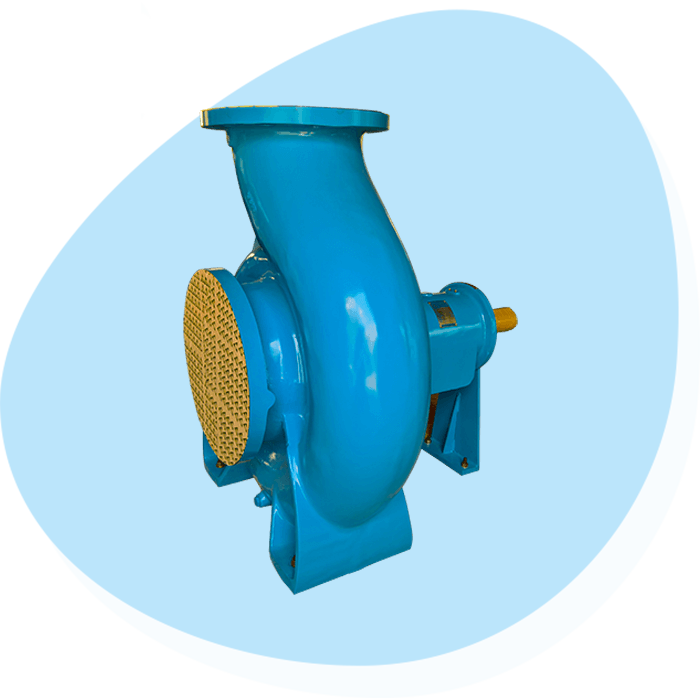

PULP & PAPER STOCK PUMPS (SPS+T)
Equipped with a Captive Steel Foundry With a Capacity of 450 MT/month
The paper stock pumps are used for continuous operation in the process industries for the pumping of clean, abrasive/corrosive liquids, and various stocks up to 8% consistency. It is suitable for all liquor applications in the paper and pulp industry.
Operating Range
- Delivery Size : DN 32mm to 300mm
- Capacity : Up to 1800m/hr
- Head: Up to 150m
- Temperature : Up to 140° C
- Pressure: Up to 22 bar
Design Features
- DIN 24256 Std
- Open impellers with renewable front wear plate and closed impeller with wear - ring
- Simple external adjustment for impeller wear from suction side
- Gland packed / mechanical seal / dynamic Seal
Applications
Handling pulp & paper stocks up to 8% consistency
All liquor applications in pulp & paper industries
Suitable for high capacity requirement of acids & alkalies, corrosive slurries etc.,
Suitable for heavily contaminated liquids, raw sewage & sludge
