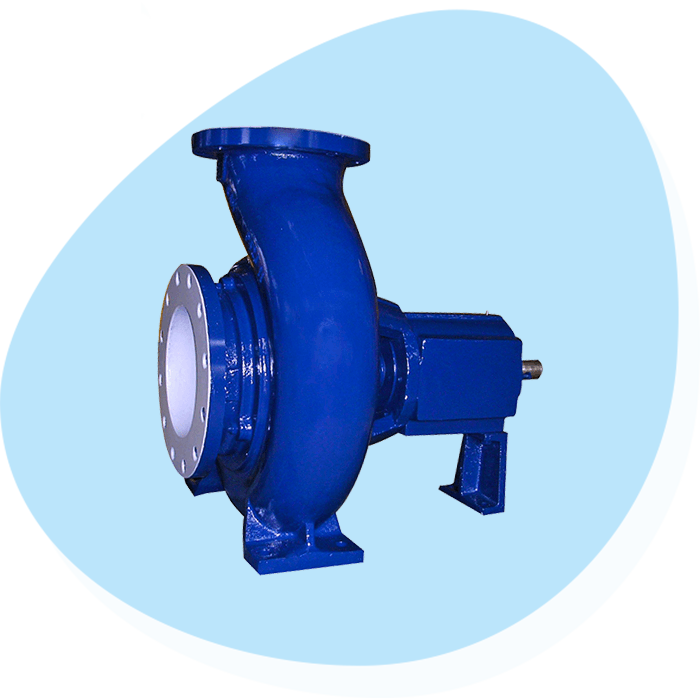

PULP & PAPER STOCK PUMPS (TPS)

Equipped with a Captive Steel Foundry With a Capacity of 450 MT/month

Paper stock pumps are known for their heavy duty, centrifugal design. It is designed for handling paper stocks and pulp up to 7% consistency. It is also suitable for heavily contaminated liquids.

Operating Range

  • Delivery Size : DN 32 to 350 mm
  • Capacity : Up to 2250m³/hr
  • Head : Up to 80m
  • Temperature : Up to 140° C
  • Pressure : Up to 22 bar

Design Features

  • Heavy Duty Centrifugal Design
  • Conforming to DIN 24256
  • Open impellers with renewable front wear plate and closed impeller with wear - ring
  • Simple external adjustment for impeller wear
  • Gland packed / mechanical seal

Applications

Handling pulp & paper stocks up to 7% consistency

All liquor applications in pulp & paper industries

Suitable for high capacity requirement of acids, alkaline, corrosive slurries etc.,

Suitable for heavily contaminated liquids, raw sewage, sludge
