Plunger type Dosing Pump

Overview

  • Performance conforms to API 675.
  • Precise metering devices.
  • Plunger is hard chrome plated.
  • Flow rate is linear to stroke length variations.
  • External arrangement for flushing the gland packing to increase its life is also possible.
  • Metering accuracy is almost independent of back pressure.

Features

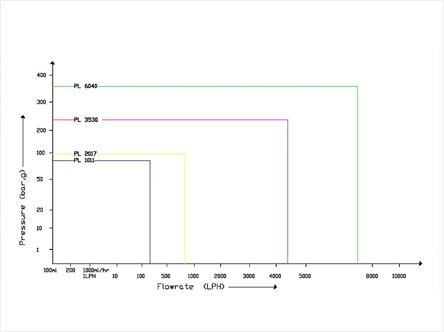

Technical Data

Flow rate Pressure Pump Model Installation Dimensions
(Ltr / Hr) bar (g) Max. L W H
0-513 133 PL1011 1050 350 850
0-4152 640   PL2017 1550   400  1350
0-10993 813   PL3530 1800   450  1400
0-22800 796   PL6040 2300    700  2000

Options

  • Multiple Head with identical or different outputs for each head using single drive.
  • Jacketed Head for Heating or Cooling the liquid been pumped.
  • Automatic flow variation by receiving 4-20 mA signal from the process.

Material of Construction

Materials Of Construction being offered :

  • SS304/ SS304L
  • SS316/ SS316L
  • Carbon Steels
  • Alloy20
  • Hastalloy
  • Any other special alloy.

Application

  • Industries Duty
  • Oil industries Wax Inhibitors, Demulsifier, Scale inhibitor, Corrosion inhibitor, Biocides
  • Gas industries Boiler feed treatment, Injection, Hydrotesting unit, Boiler chemical dosing, Odorizing natural gas Methanol, Butane, Propane
  • Pharmaceuticals Tablet coating, syrup transfer, cream transfer, ointment transfer
  • Paper Industries Stock preparation in continuous bleaching process
  • Sugar Paper & textiles
