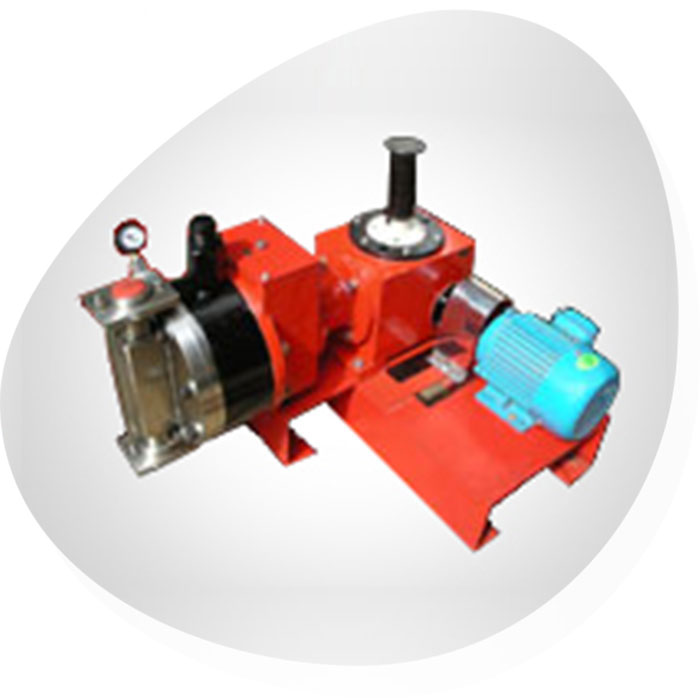

Mechanical Diaphragm Pump

Overview

  • Glandless design and entirely Leak Proof operation.
  • Manual stroke adjustment for flow variation.
  • Splash type lubrication in gear box.
  • Negative suction upto1.5Mtrs. maximum.

Features

Technical Data

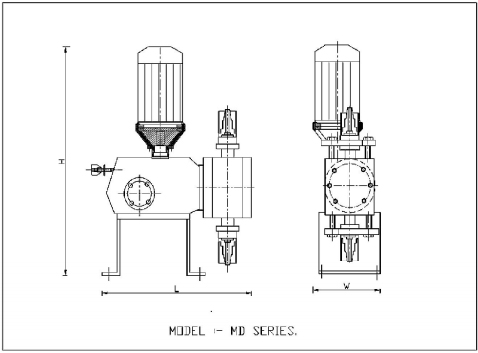

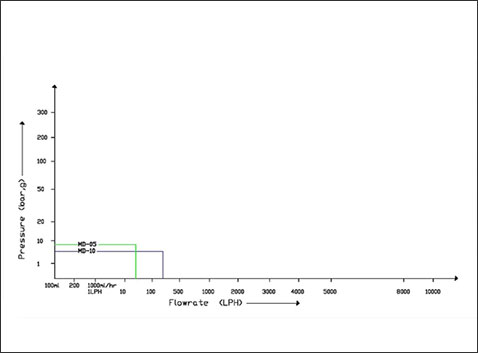

Flow rate Pressure Pump Model Installation Dimensions
(Ltr / Hr) bar (g) Max. L (mm) W (mm) H (mm)
0-40 8 MD 05 400 230 650
0-250 5 MD 10 450  250 670

Options

  • Automatic flow variation by receiving 4-20 mA signal from the process.

Material of Construction

Materials Of Construction being offered :

  • SS304/ SS304L
  • SS316/ SS316L
  • Carbon Steels
  • PP
  • PTFE
  • PVC
  • PVDF
  • Alloy20
  • Hastalloy
  • Any other special alloy

Application

  • Oil & Gas
  • Petrochemicals
  • Power
  • Chemicals and Fertilizers
  • Water, Waste Water, Sewage Treatments
  • Pharmaceuticals
  • Paper and Textiles
  • Food and Beverages

Hydraulically Actuated Diaphragm Type Chemical Injection Pump Installed By Us At PD Oman
