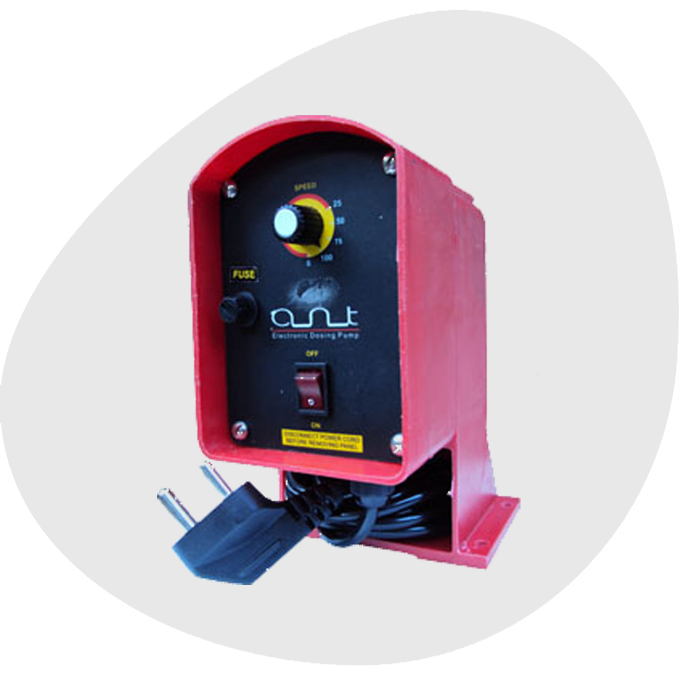

ED Series Pump
Accessories
- Suction & Discharge Tubing of LDPE Material 2.5 mtrs. in length
- Strainer Cum Foot valve
- Antisyphone Valve in PP
- Built in Electrical Cable moulded with Plug
- Instructions manual
Features
Selection Chart
| Model | Capacity LPH | Pressure KG/CM2 | Features |
| ED 01 | 0 To 6 | 4 | Flow Variation by Manualy frequency variation |
| ED 02 | 0 To 10 | 4 | |
| ED 03 | 0 To 20 | 4 | |
| ED 04 | 0 To 30 | 4 |
Features
- Electronic Dosing Pump
- Electronically operated mechanically actuated Diaphragm
- Adjustable injection frequency (15 to 100 SPM )
- Compact size, light weight, more robust structure
- Unique double ball check. NRVs for better dosing accuracy
- Solenoid drive with minimum moving parts
- 1 MWC max suction lift
- Steady state accuracy +/- 5% Repeatability +/- 5%
Material of Construction of Wetted Parts
- Stainless 316, 304, 316L, 304L,
- Monel,
- Hastalloy B, C
- Alloy 20,
- PP, PTFE, GFT,
- Diaphragm - PTFE backed by Hypalon
Applications
- Water & Waste Water Treatment Chemicals
- Laboratory Chemicals
