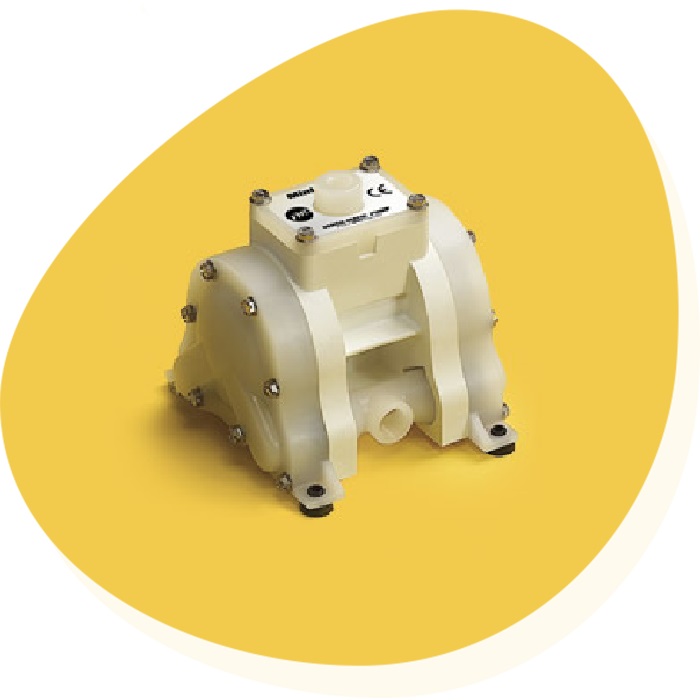

E8 3/8" Pump

Versa-Matic® provides maximum performance in a mini package with our E8 3/8" pumps. Small enough to fit in your hand, yet capable of pumping up to 6.8 gallons per minute, these pumps can be mounted upright, sideways, and even inverted to adapt to your application. They also feature our patented Elima-Matic® Air Valve System to deliver non-stalling, non-icing, lube-free operation as well as the elimination of blow-by. E8 pumps are available in Polypropylene and Kynar® wetted materials of construction, with XL (Santoprene®), Geolast® or PTFE interiors.

Specifications

Specifications English  Metric
Flow Rate
adjustable to  0-6.8 gpm 0-26 lpm
Port Size
Inlet and Outlet 3/8" NPTF (BSP)
Air Inlet 0.25" NPTF
Air Exhaust 0.25" NPTF
Suction Lift
Dry  11'   3.4m
PTFE Dry  11'   3.4m
Max. Particle Size
(Diameter) 0.10" 2.5mm
Shipping Weights
Polypropylene 3.0 lbs 1.4 kg
Kynar 3.0 lbs 1.4 kg

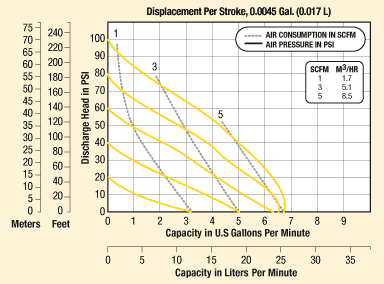

Performance Chart

Caution: Do not exceed 100 psig (6.8 bars) air supply or liquid pressure.
