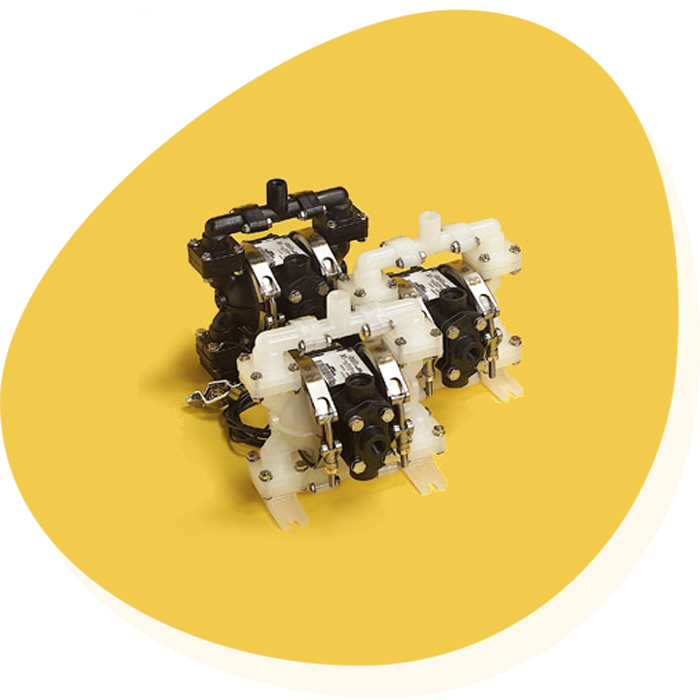

E6 1/4" Pumps

Get reliable performance with the non-stalling, lube-free air valve system in Versa-Matic's E6 1/4" pump. Leak-free design reduces downtime, ensuring continuous, reliable pump performance.

The E6 1/4" Pump...
  • features dual threaded manifolds
  • offers optional manifold configurations
  • provides an integrated muffler
  • is self-priming

Specifications

Specifications English  Metric
Flow Rate
adjustable to  0-4 gpm 0-151 lpm
Port Size
Inlet and Outlet 0.25" NPTF I.D.
  0.50" NPTM O.D.
Air Inlet 0.25" NPTF
Air Exhaust 0.75" NPTF
Suction Lift
5.83' Dry/25.5' Wet 1.78/777m
Max. Particle Size
(Diameter) 0.3125" 1mm
Shipping Weights
Polypropylene 3.38 lbs 1.53 kg
PVDF 4.13 lbs 1.87 kg
Groundable Acetal 5.00 lbs

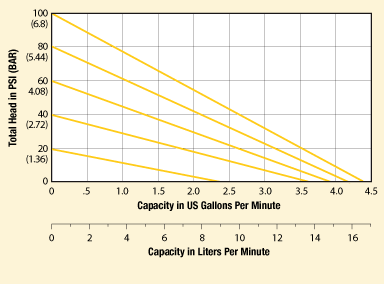

Performance Chart

Caution: Do not exceed 125 psig (8.5 bars) air supply or liquid pressure
