Bolted Plastic
The Elima-Matic air valve system ensures continuous, reliable performance in the E4 1-1/2" pump. Available in both clamped and bolted models with a flow rate of 0-72 gpm, this durable pump can handle infinite variable flows up to 90% solids.

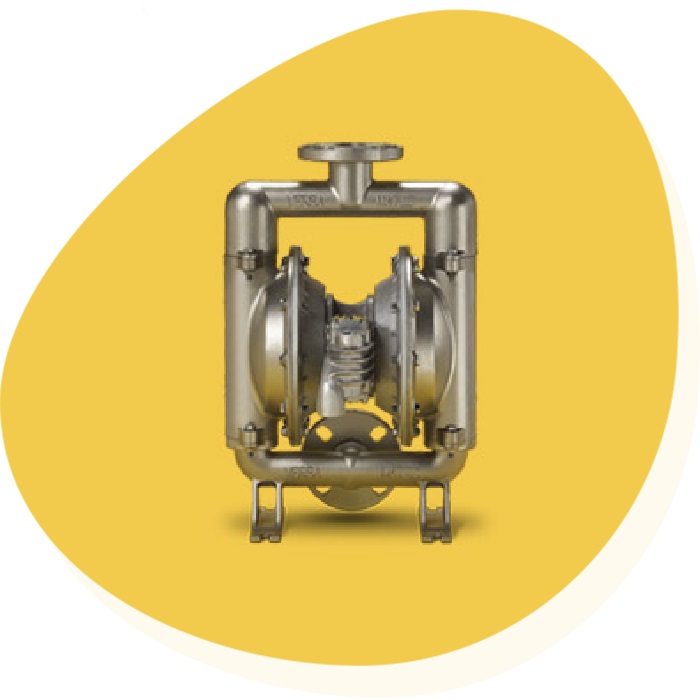

The E4 1-1/2" Pump...
The E4 1-1/2" Pump...
- Is available in either plastic or metal
- Supplies a corrosion-resistant air section
- Is self-priming
- Provides dimensional interchangeability with Wilden 1-1/2" pumps
- Offers horizontal discharge model on bolted metallic pump
Specifications
Specifications | English | Metric |
Flow Rate | ||
adjustable to | 0-72 gpm | 0-272 lpm |
Port Size | ||
Inlet | 1.50" ANSI/DIN Flanged | |
Discharge | 1.50" ANSI/DIN Flanged | |
Air Exhaust | 0.75" NPT | |
Suction Lift | ||
15' Dry/25' Wet (4.57m/7.62m) | ||
PTFE: 10' Dry/20' Wet (3.05m/6.09m) | ||
Max. Particle Size | ||
Diameter | 0.1875" | 4.76mm |
Shipping Weights | ||
Stainless | 65 lbs | 29.2 kg |
Hastelloy C | 68 lbs | 30.8 kg |

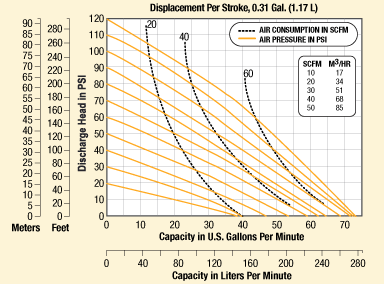

Performance Chart
Determined by actual flow meter tests
Note: For E4 pumps fitted with PTFE diaphragms, reduce water discharge figures by 20%. Suction lift is reduced to 10' (3.05m) dry and 20' (6.10m) wet
Caution: Do not exceed 125 psig (8.5 bars) air supply or liquid pressure
Horizontal Discharge Model Available
