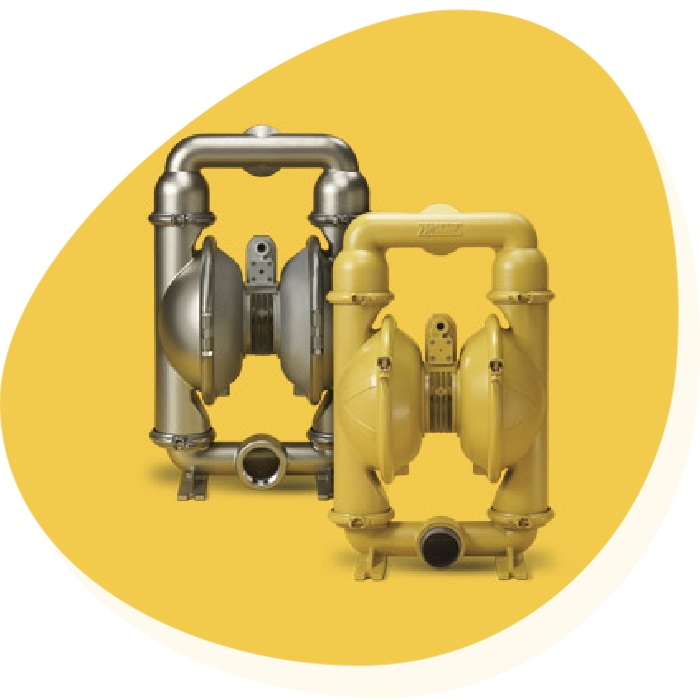

Clamped Metallic
Elima-Matic's non-stalling, lube-free air valve system allows the Versa-Matic E3 3" pump to provide reliable performance. Available in clamped or bolted models, with leak-free design that reduces downtime and ensures continuous operation.
The E3 3" Pump...
The E3 3" Pump...
- Is available in either plastic or metal
- Can handle infinite variable flows up to 90% solids
- Is self-priming
- Provides dimensional interchangeability with Wilden 3" pumps
- Offers screen mount on aluminum model
Specifications
Specifications | English | Metric |
Flow Rate | ||
adjustable to | 0-260 gpm | 0-984 lpm |
Port Size | ||
Inlet | 3.0" NPT (BSP) | |
Discharge | 3.0" NPT (BSP) | |
Air Inlet | 0.5" NPT | |
Air Exhaust | 1.0" NPT | |
Suction Lift | ||
15' Dry/25' Wet (6.10m/7.62m) | ||
PTFE: 10' Dry/20' Wet (3.05m/6.10m) | ||
Max. Particle Size | ||
Diameter | 0.375" | 9.52mm |
Shipping Weights | ||
Aluminum | 115 lbs | 52.16 kg |
Cast Iron | 210 lbs | 95.25 kg |
Hastelloy C | 210 lbs | 95.25 kg |
Stainless | 220 lbs | 99.79 kg |

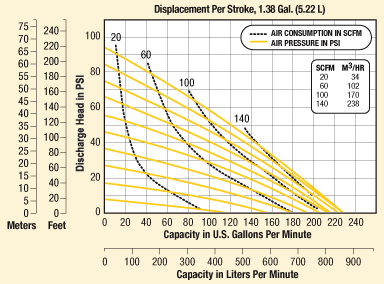

Performance Chart
Determined by actual flow meter tests
Note: For E3 pumps fitted with PTFE diaphragms, reduce water discharge figures by 20%. Suction lift is reduced to 10' (3.05m) dry and 20' (6.10m) wet
Caution: Do not exceed 125 psig (8.5 bars) air supply or liquid pressure.
Screen Mount available for aluminum model
