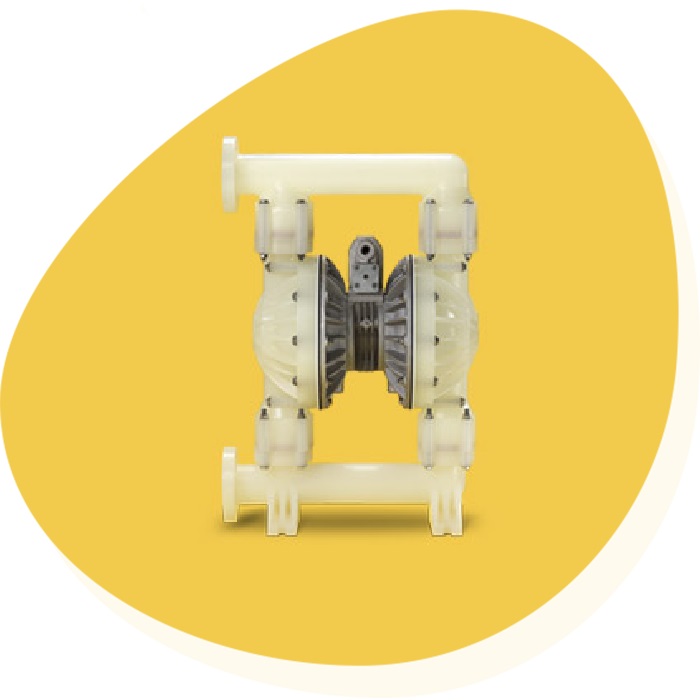

Bolted Plastic: Standard Porting

Versa-Matic's E2 2" pump uses the Elima-Matic air valve system to provide non-stalling, lube-free performance. It is available in a clamped or bolted design, with some models offering a side discharge feature that prevents corrosive fluid from leaking onto the pump's center section.

The E2 2" Pump...
  • Is available in either plastic or metal
  • Avoids blow-by when the pump is online but not in use
  • Is self-priming
  • Provides dimensional interchangeability with Wilden 2" pumps
  • Offers horizontal discharge model on bolted metallic pump

Specifications

Specifications English  Metric
Flow Rate
adjustable to  0-155 gpm 0-586 lpm
Port Size
Inlet 2.0" ANSI, 150 class (DIN 50)
Discharge 2.0" ANSI, 150 class (DIN 50)
Air Inlet 0.50" NPT
Air Exhaust 0.75" NPT
Suction Lift
20' Dry/25' Wet (6.10m/7.62m)
PTFE: 10' Dry/20' Wet (3.05m/6.10m)
Max. Particle Size
Diameter 0.25" 6.35mm
Shipping Weights
E2PA 72 lbs 32.68 kg
E2PS 106 lbs 48.12 kg
E2KA 98 lbs 44.49 kg
E2KS 132 lbs 59.92 kg

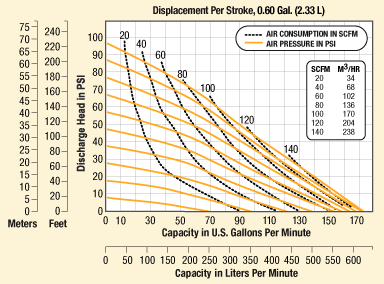

Performance Chart

Determined by actual flow meter tests

Note: For E2P pumps fitted with PTFE diaphragms, reduce water discharge figures by 20%. Suction lift is reduced to 10' (3.05m) dry and 20' (6.10m) wet

Caution: Do not exceed 100 psig (6.9 bars) air supply or liquid pressure.
