Flap Value

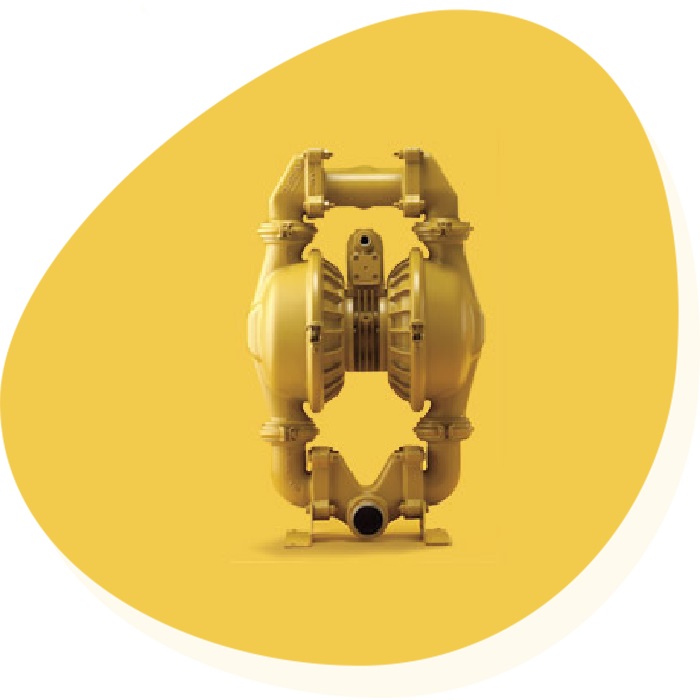

Versa-Matic's E2 2" pump uses the Elima-Matic air valve system to provide non-stalling, lube-free performance. It is available in a clamped or bolted design, with some models offering a side discharge feature that prevents corrosive fluid from leaking onto the pump's center section.
The E2 2" Pump...
The E2 2" Pump...
- Is available in either plastic or metal
- Avoids blow-by when the pump is online but not in use
- Is self-priming
- Provides dimensional interchangeability with Wilden 2" pumps
- Offers horizontal discharge model on bolted metallic pump
Specifications
Specifications | English | Metric |
Flow Rate | ||
adjustable to | 0-180 gpm | 0-681 lpm |
Port Size | ||
Inlet | 2.0" Male NPT (BSP) | |
Discharge | 2.0" Male NPT (BSP) | |
Air Inlet | 0.50" NPT | |
Air Exhaust | 0.75" NPT | |
Suction Lift | ||
10' Dry/10' Wet (3.048m/3.048m) | ||
Max. Particle Size | ||
Diameter | 1.125" | 28.57mm |
Shipping Weights | ||
Aluminum | 88 lbs | 39.92 kg |

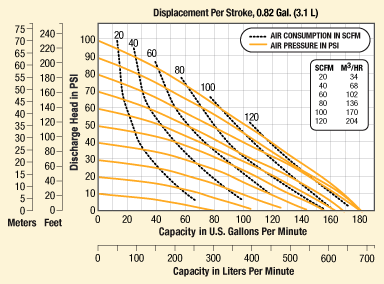

Performance Chart
Determined by actual flow meter tests

Note:For E2FV pumps fitted with PTFE diaphragms, reduce water discharge figures by 20%. Suction lift is reduced to 10' (3.05m) dry and 20' (6.10m) wet
Caution: Do not exceed 125 psig (8.5 bars) air supply or liquid pressure
