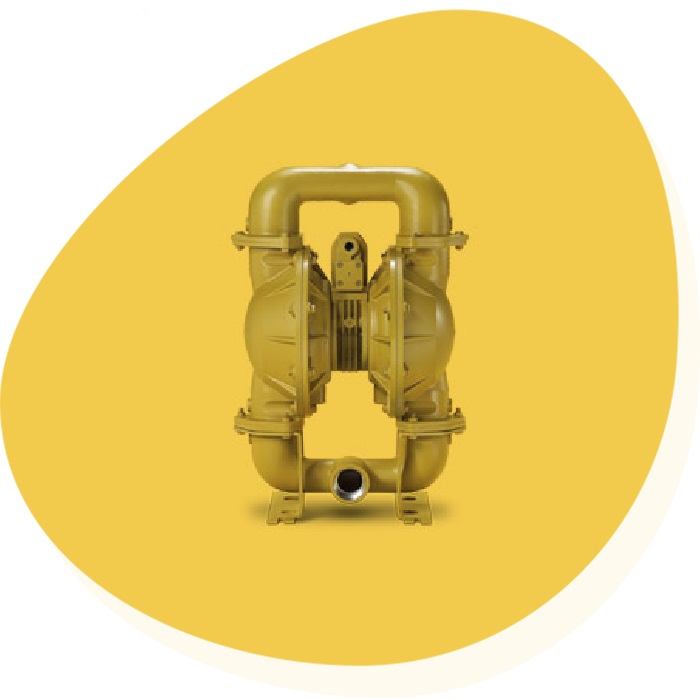

Bolted Aluminum

Versa-Matic's E2 2" pump uses the Elima-Matic air valve system to provide non-stalling, lube-free performance. It is available in a clamped or bolted design, with some models offering a side discharge feature that prevents corrosive fluid from leaking onto the pump's center section.

The E2 2" Pump...
  • Is available in either plastic or metal
  • Avoids blow-by when the pump is online but not in use
  • Is self-priming
  • Provides dimensional interchangeability with Wilden 2" pumps
  • Offers horizontal discharge model on bolted metallic pump

Specifications

Specifications English  Metric
Flow Rate
adjustable to  0-174 gpm 0-685 lpm
Port Size
Inlet 2.0" NPT (BSP)
Discharge 2.0" NPT (BSP)
Air Inlet 0.50" NPT
Air Exhaust 0.75" NPT
Suction Lift
20' Dry/ 25' Wet (6.09m/7.62m)
PTFE: 10' Dry/ 20' Wet (3.05m/6.10m)
Max. Particle Size
Diameter 0.43" 11mm
Shipping Weights
Aluminum 73.5 lbs 33 kg

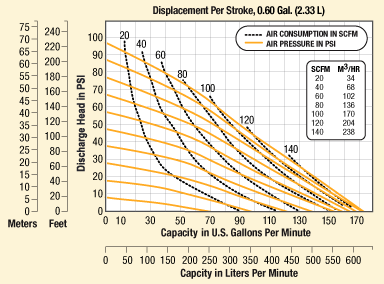

Performance Chart

Determined by actual flow meter tests

Note: For E2 pumps fitted with PTFE diaphragms, reduce water discharge figures by 20%. Suction lift is reduced to 10' (3.05m) dry and 20' (6.10m) wet

Caution: Do not exceed 125 psig (8.5 bars) air supply or liquid pressure
