Bolted Plastic: Optional Porting

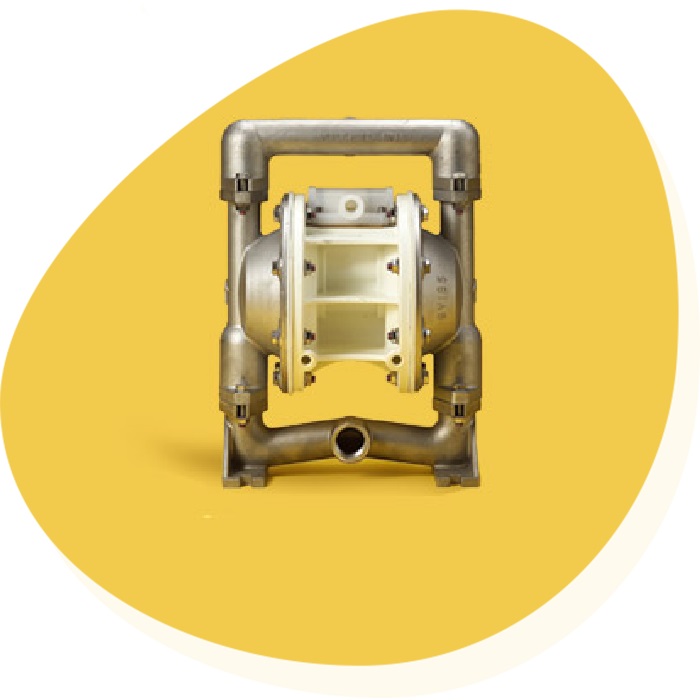

Versa-Matic's E1 1" pump uses the Elima-Matic air valve system to provide non-stalling, lube-free performance. The E1 1" plastic bolted pump comes in optional and standard porting models, and offers a flow rate of 0-35 gpm.
The E1 1" Pump...
The E1 1" Pump...
- Is available in either plastic or metal
- Supplies a corrosion-resistant air section
- Provides multiple porting options
- Is self-priming
- Offers center port and split manifolds on plastic bolted pumps
- Offers UL listed models on bolted metallic pumps
Specifications
Specifications | English | Metric |
Flow Rate | ||
adjustable to | 0-35 gpm | 0-132 lpm |
Port Size | ||
Inlet | 1.0" ANSI/DIN Flanged | |
Discharge | 1.0" ANSI/DIN Flanged | |
Air Inlet | 0.375" NPTF | |
Air Exhaust | 0.50" NPTF | |
Suction Lift | ||
15' Dry/25' Wet (4.57m/7.62m) | ||
PTFE: 10' Dry/20' Wet (3.05m/6.10m) | ||
Max. Particle Size | ||
Diameter | 0.125" | 3.17mm |
Shipping Weights | ||
Polypropylene | 24 lbs | 10.9 kg |
Kynar | 24 lbs | 10.9 kg |

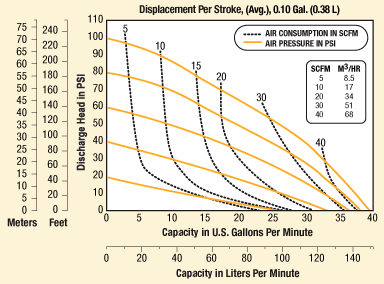

Performance Chart
Determined by actual flow meter tests
Caution: Do not exceed 100 psig (6.9 bars) air supply or liquid pressure
Options: Center Port and Split Manifolds Available
