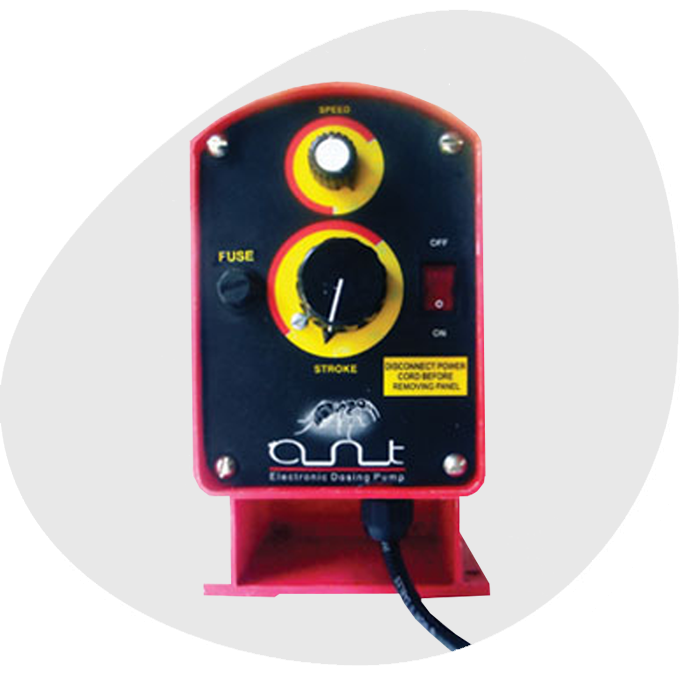

DD Series Pump

Accessories

  • Suction & Discharge Tubing of LDPE Material 2.5 mtrs. in length
  • Strainer Cum Foot valve
  • Antisyphone Valve in PP
  • Built in Electrical Cable moulded with Plug
  • Instructions manual

Features

Selection Chart

Model Capacity LPH Pressure KG/CM2 Features
DD 01 0 To 6
& 0 to 2		 4
8		 Flow Variation Manualy By both frequency & Stroke length variation Or by only stroke length Variation and keeping Injection frequency at max.
DD 02 0 To 10 2
DD 03 0 To 20
& 0 to 7		 4
10
DD 04 0 To 30 4

Features

  • Electronic Dosing Pump
  • Electronically operated mechanically actuated Diaphragm
  • Adjustable injection frequency (15 to 100 SPM ) & Stroke length
  • Compact size, light weight, more robust structure
  • Unique double ball check. NRVs for better dosing accuracy
  • Solenoid drive with minimum moving parts
  • 1 MWC max suction lift
  • Steady state accuracy +/- 5% Repeatability +/- 5%

Material of Construction of Wetted Parts

  • Stainless 316, 304, 316L, 304L,
  • Monel,
  • Hastalloy B, C
  • Alloy 20,
  • PP, PTFE, GFT,
  • Diaphragm - PTFE backed by Hypalon

Applications

  • Water & Waste Water Treatment Chemicals
  • Laboratory Chemicals
