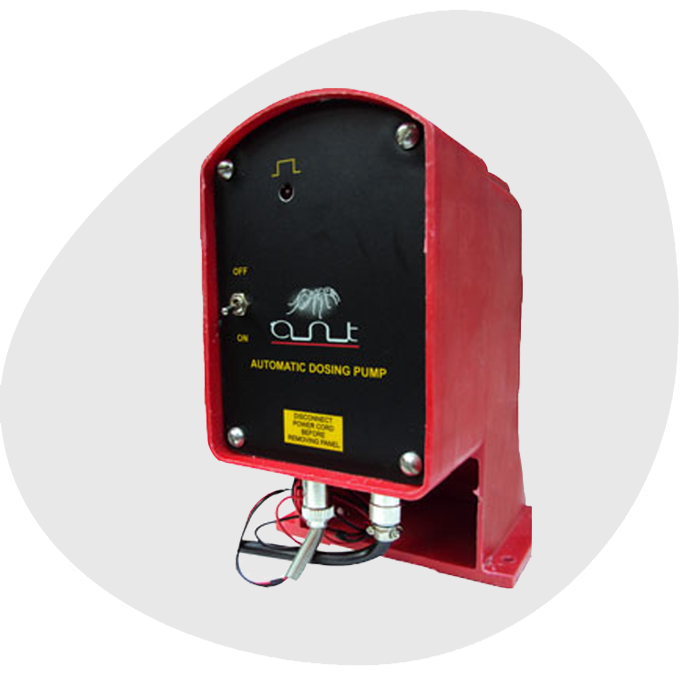

AD Series Pump

Accessories

  • Suction & Discharge Tubing of LDPE Material 2.5 mtrs. in length
  • Strainer Cum Foot valve
  • Antisyphone Valve in PP
  • Built in Electrical Cable moulded with Plug
  • Instructions manual

Features

Selection Chart

Model Capacity LPH Pressure KG/CM2 Features
AD 01 0 To 6 4 Automatic Flow variation as per receiving external 4 To 20 mA signal
AD 02 0 To 10 2
AD 03 0 To 20 4
AD 04 0 To 30 4

Features

  • Electronic Dosing Pump
  • Electronically operated mechanically actuated Diaphragm
  • Automatic Adjustable injection frequency (0 to 100 SPM As per External 4 & 20 mA Signal )
  • Compact size, light-Weight, more robust structure
  • Unique double ball check. NRVs for better dosing accuracy
  • Solenoid drive with minimum moving parts
  • 1 MWC max suction lift
  • Steady state accuracy +/- 5% Repeatability +/- 5%

Material of Construction of Wetted Parts

  • Stainless 316, 304, 316L, 304L,
  • Monel,
  • Hastalloy B, C
  • Alloy 20,
  • PP, PTFE, GFT,
  • Diaphragm - PTFE backed by Hypalon

Applications

  • Water & Waste Water Treatment Chemicals
  • Laboratory Chemicals
