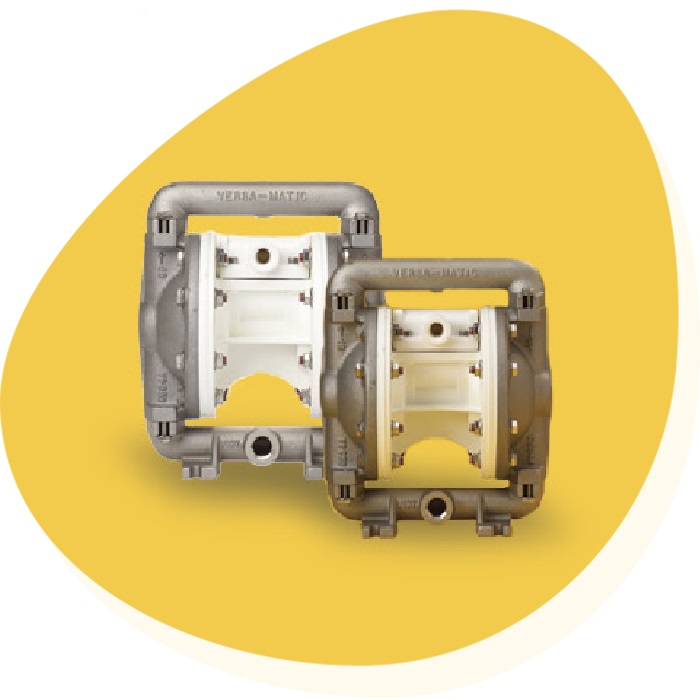

E7 3/4" Pumps

Depend on the Versa-Matic® E7 3/4" aluminum diaphragm pump for reliable use in lubrication, tire filling, adhesive dispensing, OEM systems, and many industrial applications.

The E7 3/4" Pump...
  • Features the exclusive Elima-Matic® air valve system
  • Shares standardized parts with the E5 1/2" pump line
  • Offers metallic or non-metallic air sections
  • Can be grounded (some models)
  • Features leak-free bolted construction

Specifications

Specifications English  Metric
Flow Rate
adjustable to  0-14 gpm 0-53 lpm
Port Size
Inlet and Outlet 0.75" NPTF I.D.
  0.375" NPTM O.D.
Air Inlet 0.375" NPTF
Air Exhaust 0.75" NPTF
Suction Lift
15" Dry/25.5' Wet (6.096m/7.62m)
Teflon 5" Dry/10' Wet (1.52/3.048m)
Max. Particle Size
(Diameter) 0.0625" 1.6mm
Shipping Weights
Aluminum 15 lbs 6.8 kg

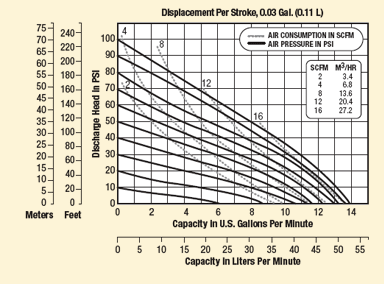

Performance Chart

Caution: Do not exceed 100 psig (6.9 bars) air supply or liquid pressure.
